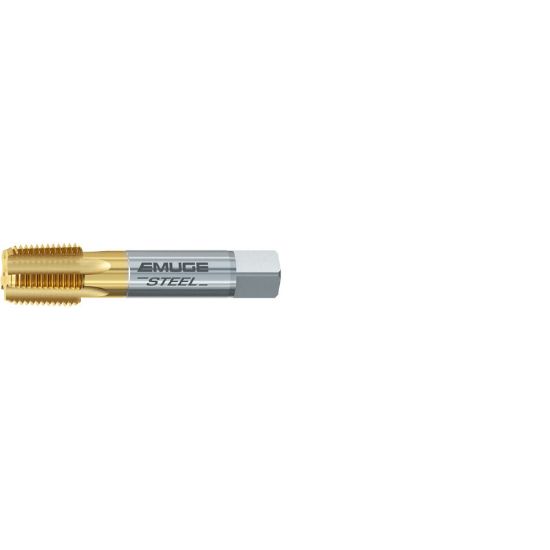

EMUGE AW181400.5766 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

ISO: AW181400.5766

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181400.5766
Delivery date: 3-5 days
$87.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 18.00TPI
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.5622 14.28MM
Tap Square 0.5310
Flute Direction STRAIGHT
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Tap Type Pipe
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Thread Type NPT/NPTF/ANPT
Length Type Standard
Tool Material Steel
Flutes/Inserts 5
Dimension Standard ANSI/ANSI
Tap Style Pipe Straight Flute
Thread Size 3/8"
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
