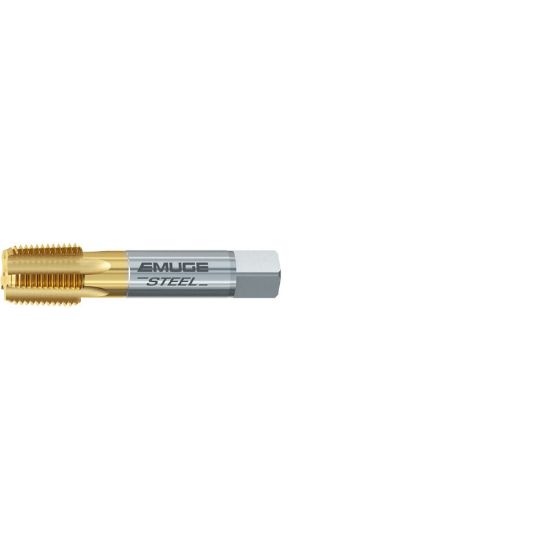

EMUGE AW181400.5764 Tap 1/8-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

ISO: AW181400.5764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181400.5764
Delivery date: 3-5 days
$59.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating High Performance
Coating TiN
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Overall Len 2.1250 53.98MM
Tap Style Pipe Straight Flute
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Size 1/8"
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Shank/Pilot Dia 0.4370 11.10MM
Drill Range 0.3319 8.43MM
Flutes/Inserts 5
Length Type Standard
Thread Limit PIPE
Tap Square 0.3280
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
