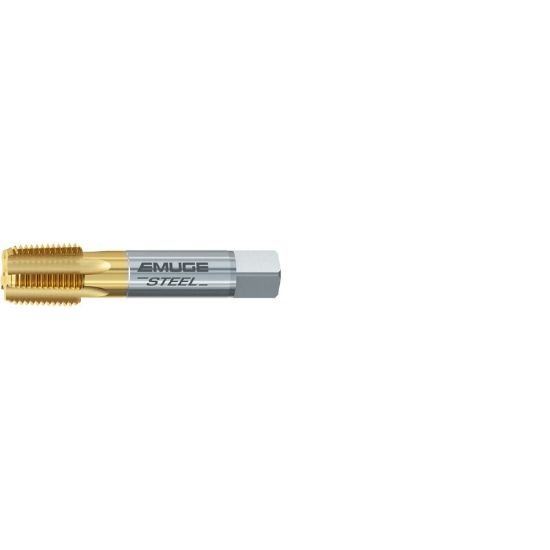

Picture of Emuge AW181400.5782 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

Emuge AW181400.5782 Tap 1/16-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE TiN

Part Number: EMUAW181400.5782 ISO: AW181400.5782

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158022
Vendor: Sussex Tool and Supply
$55.96
EMUGE AW181400.5782 1/16"x27.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Coating TIN
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 27.00TPI
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Thread Size 1/16"
Thread Limit PIPE
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2417 6.14MM
Tap Square 0.2340
Tap Chamfer 2.0P-3.0P
