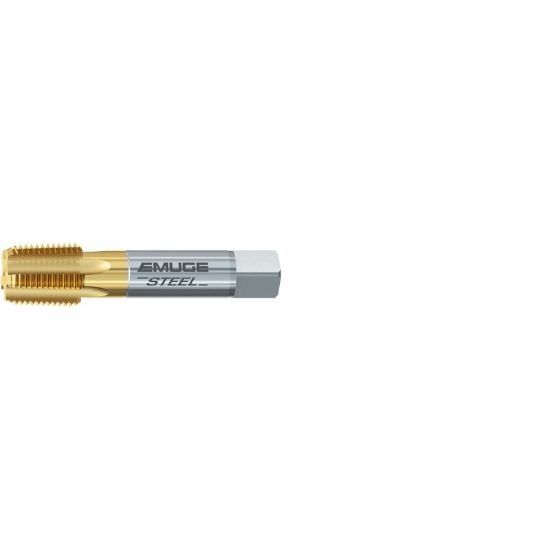

Picture of Emuge AW181400.5770 Tap 1-1/4-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

Emuge AW181400.5770 Tap 1-1/4-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE TiN

Part Number: EMUAW181400.5770 ISO: AW181400.5770
Looking for alternatives…
Find a drill for this tap 1-1/4" × 11.50TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158019
Vendor: Sussex Tool and Supply
$468.75

Description

EMUGE AW181400.5770 1-1/4"x11.50TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.3120 33.32MM
Flutes/Inserts 6
Thread Pitch 11.50TPI
Thread Size 1-1/4"
Tap Drill Range 1.4839 37.69MM
Tap Square 0.9840
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
