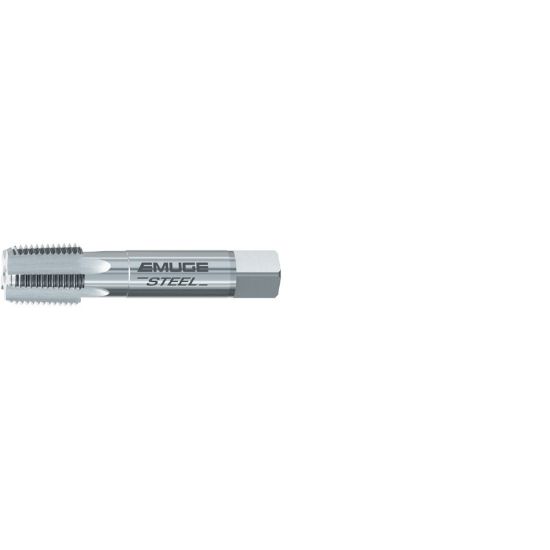

EMUGE AW181000.5772 Tap 2-11.50TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW181000.5772

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181000.5772
Delivery date: 3-5 days
$620.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Straight Flute Pipe, Pipe Tapping, Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Pitch 11.50TPI
Thread Size 2"
Dimension Standard ANSI/ANSI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Tap Square 1.4060
Overall Len 4.5000 114.30MM
Tap Style Pipe Straight Flute
Tool Material Steel
Thread Limit PIPE
Shank/Pilot Dia 1.8750 47.63MM - 1-7/8
Flutes/Inserts 7
Drill Range 2.1874 55.56MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
