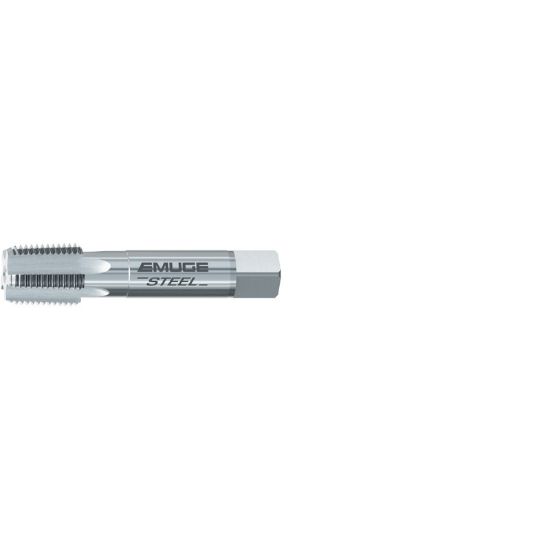

EMUGE AW181000.5768 Tap 3/4-14.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW181000.5768

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181000.5768
Delivery date: 3-5 days
$158.32

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Limit PIPE
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Tool Material Steel
Thread Type NPT/NPTF/ANPT
Length Type Standard
Thread Pitch 14.00TPI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.9060 23.01MM
Tap Type Pipe
Dimension Standard ANSI/ANSI
Overall Len 3.2520 82.60MM
Flutes/Inserts 6
Thread Size 3/4"
Tap Style Pipe Straight Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Automotive Yes
