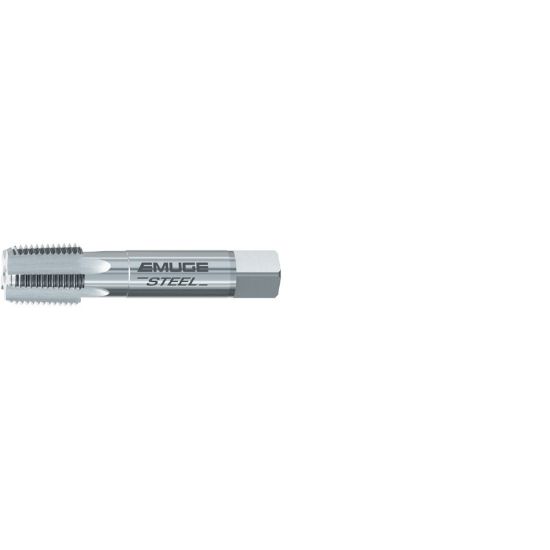

EMUGE AW181000.5766 Tap 3/8-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW181000.5766

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181000.5766
Delivery date: 3-5 days
$70.64

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Straight Flute Pipe, Pipe Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Flutes/Inserts 5
Tap Style Pipe Straight Flute
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Flute Direction STRAIGHT
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Tap Type Pipe
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.5622 14.28MM
Tap Square 0.5310
Length Type Standard
Thread Size 3/8"
Thread Pitch 18.00TPI
Tap Chamfer 2.0P-3.0P
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Energy Yes
Agricultural YES
