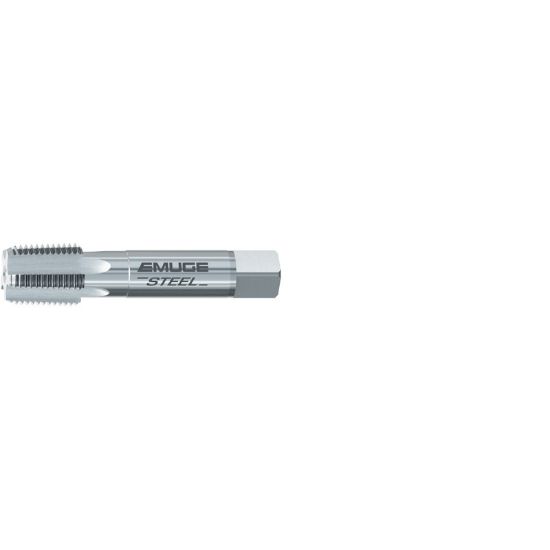

EMUGE AW181000.5765 Tap 1/4-18.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P Carbide HSSE

ISO: AW181000.5765

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181000.5765
Delivery date: 3-5 days
$53.70

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Application Pipe Tapping, Tapping, Straight Flute Pipe
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Flute Direction STRAIGHT
Tap Type Pipe
Thread Pitch 18.00TPI
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Overall Len 2.4370 61.90MM
Tap Style Pipe Straight Flute
Thread Type NPT/NPTF/ANPT
Length Type Standard
Tool Material Steel
Flutes/Inserts 5
Thread Size 1/4"
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Shank/Pilot Dia 0.5620 14.27MM
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
