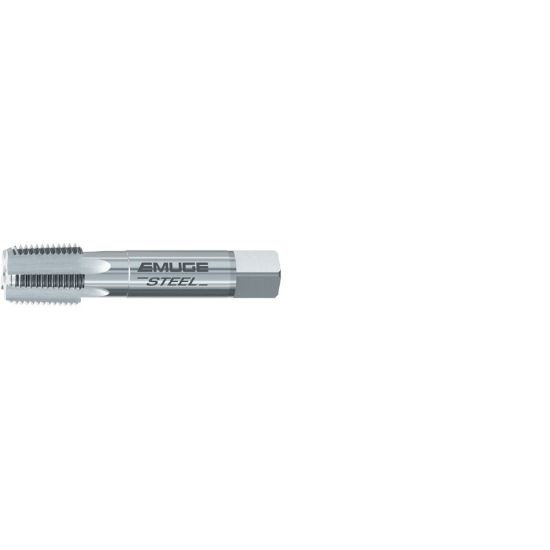

EMUGE AW181000.5764 Tap 1/8-27.00TPI Pipe NPT/NPTF/ANPT ANSI/ANSI 2.0P-3.0P HSSE

ISO: AW181000.5764

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAW181000.5764
Delivery date: 3-5 days
$48.66

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Straight Flute Pipe
Package Size 1
Performance Rating High Performance
Shipping State Massachusetts
Made In USA No
Dimensional Specifications
Tap Square 0.3280
Tap Chamfer 2.0P-3.0P
Overall Len 2.1250 53.98MM
Tap Style Pipe Straight Flute
Tool Material Steel
Flutes/Inserts 5
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Limit PIPE
Thread Pitch 27.00TPI
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Dimension Standard ANSI/ANSI
Thread Type NPT/NPTF/ANPT
Shank/Pilot Dia 0.4370 11.10MM
Drill Range 0.3319 8.43MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
Automotive Yes
