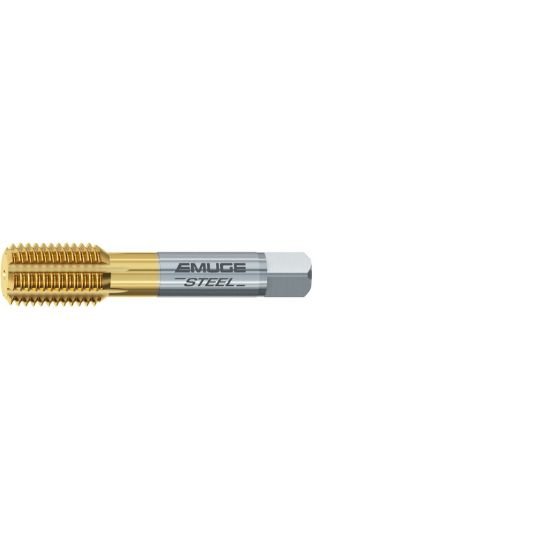

Picture of Emuge AU921400.5049 Tap 5/8-18.00TPI Mod Bottom NF/UNF/UNEF ANSI/ANSI 2.0P-3.0P Cobalt HSSE TiN

Emuge AU921400.5049 Tap 5/8-18.00TPI Mod Bottom NF/UNF/UNEF ANSI/ANSI 2.0P-3.0P Cobalt HSSE TiN

Part Number: EMUAU921400.5049 ISO: AU921400.5049

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157115
Vendor: Sussex Tool and Supply
$178.08
EMUGE AU921400.5049 5/8"x18.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 3.8110 96.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction STRAIGHT
Thread Size 5/8"
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5965 15.15MM - 0.6039 15.34MM
Tap Square 0.3600
Tap Chamfer 2.0P-3.0P
