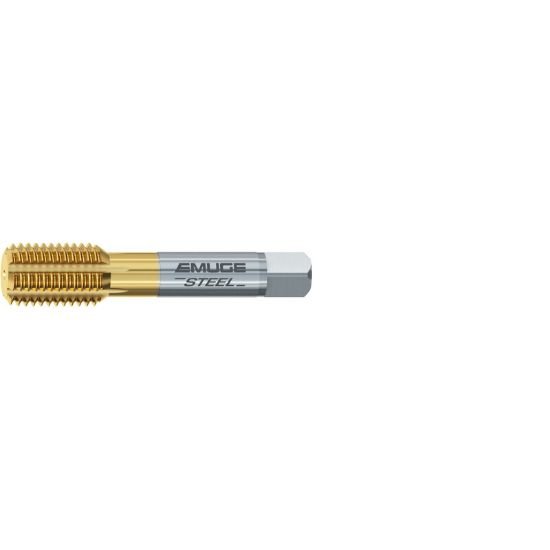

Picture of Emuge AU921400.5005 Tap Mod Bottom No.6-32.00TPI 2B NC/UNC ANSI/ANSI HSSE TiN

Emuge AU921400.5005 Tap Mod Bottom No.6-32.00TPI 2B NC/UNC ANSI/ANSI HSSE TiN

Part Number: EMUAU921400.5005 ISO: AU921400.5005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157096
Vendor: Sussex Tool and Supply
$54.18
EMUGE AU921400.5005 No.6x32.00TPI Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 2B NC/UNC Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating TIN
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction STRAIGHT
Thread Size No.6
Thread Limit 2B
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1138 2.89MM - 0.1260 3.20MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
