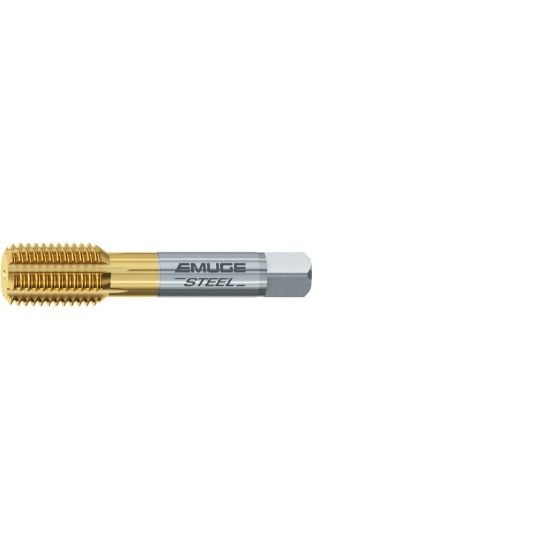

Picture of Emuge AU921400.0080 Tap Mod Bottom M8-1.25mm 6H Metric ANSI/ANSI HSSE TiN

Emuge AU921400.0080 Tap Mod Bottom M8-1.25mm 6H Metric ANSI/ANSI HSSE TiN

Part Number: EMUAU921400.0080 ISO: AU921400.0080
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$87.77
SKU: 1156945

Description

EMUGE AU921400.0080 M8x1.25MM Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Tap Square 0.2380
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
