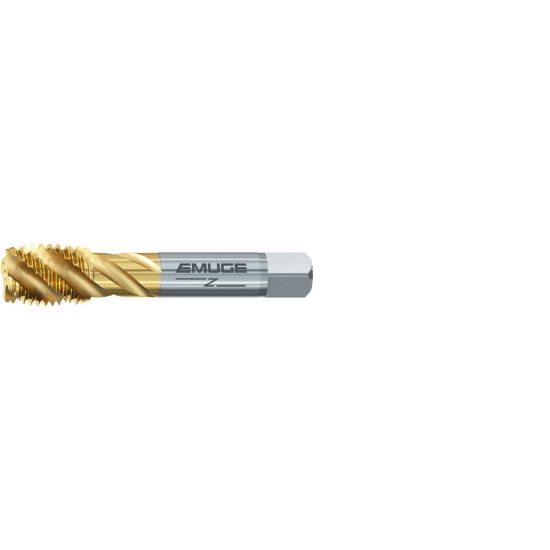

EMUGE AU513710.5043 Tap 1/4-28.00TPI Bottoming NF/UNF/UNEF ANSI/ANSI 1.5P-2.0P HSSE TiN

ISO: AU513710.5043

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU513710.5043
Delivery date: 3-5 days
$55.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Pitch 28.00TPI
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Style Cut Spiral Flute
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Shank/Pilot Dia 0.2550 6.48MM
Thread Size 1/4"
Thread Limit 3B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
