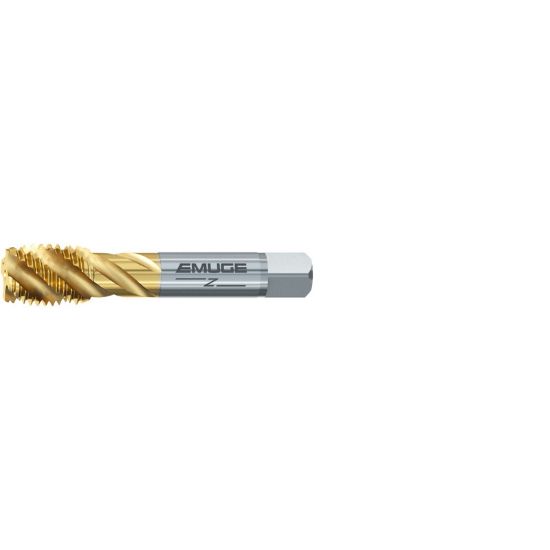

EMUGE AU513710.5041 Tap Bottoming No.10-32.00TPI 3B NF/UNF/UNEF ANSI/ANSI HSSE TiN

ISO: AU513710.5041

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU513710.5041
Delivery date: 3-5 days
$49.91

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Bottom Tapping, Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Flutes/Inserts 3
Shank/Pilot Dia 0.1940 4.93MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit 3B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tap Square 0.1520
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Thread Size No.10
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Overall Len 2.3740 60.30MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
