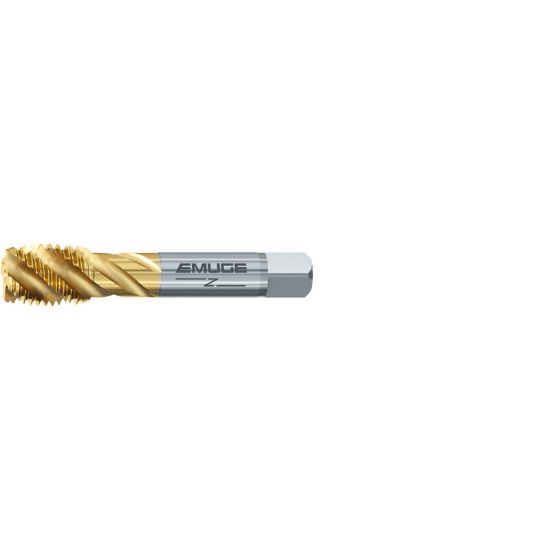

EMUGE AU513710.5009 Tap 1/4-20.00TPI Bottoming NC/UNC ANSI/ANSI 1.5P-2.0P HSSE TiN

ISO: AU513710.5009

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU513710.5009
Delivery date: 3-5 days
$55.89

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Bottom Tapping, Tapping, Cut Tapping
Package Size 1
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Thread Size 1/4"
Thread Limit 3B
Dimension Standard ANSI/ANSI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tool Material Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Medical Yes
