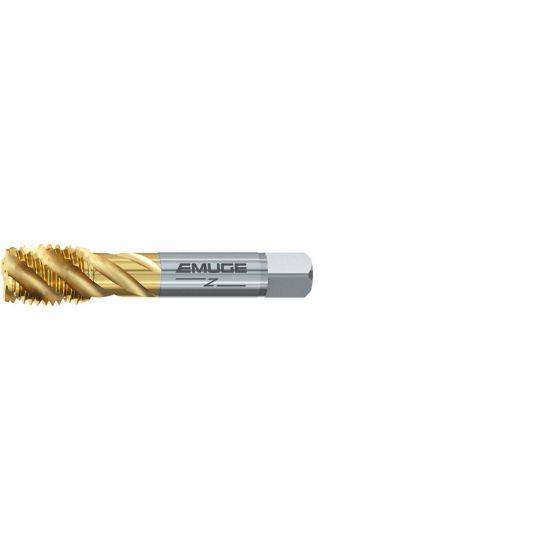

EMUGE AU513700.5003 Tap Bottoming No.4-40.00TPI 2B NC/UNC ANSI/ANSI HSSE TiN

ISO: AU513700.5003

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU513700.5003
Delivery date: 3-5 days
$52.22

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Made In USA No
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Drill Range 0.0860 2.18MM - 0.0925 2.35MM
Tool Material Steel
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Type NC/UNC
Flutes/Inserts 2
Thread Pitch 40.00TPI
Thread Limit 2B
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
