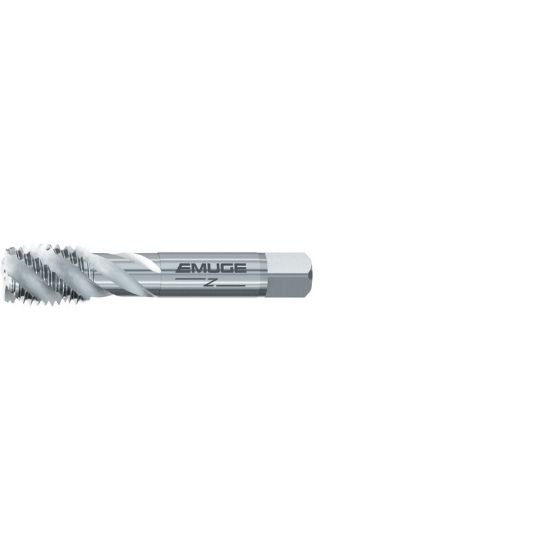

Picture of Emuge AU513500.5044 Tap 5/16-24.00TPI Bottoming NF/UNF/UNEF ANSI/ANSI 1.5P-2.0P HSS HSSE

Emuge AU513500.5044 Tap 5/16-24.00TPI Bottoming NF/UNF/UNEF ANSI/ANSI 1.5P-2.0P HSS HSSE

Part Number: EMUAU513500.5044 ISO: AU513500.5044

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156653
Vendor: Sussex Tool and Supply
$54.46
EMUGE AU513500.5044 5/16"x24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 5/16"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Tap Chamfer 1.5P-2.0P
