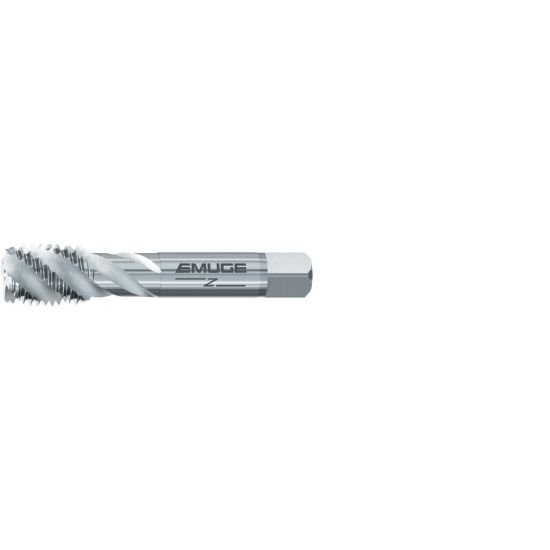

Picture of Emuge AU513500.5011 Tap 3/8-16.00TPI Bottoming NC/UNC ANSI/ANSI 1.5P-2.0P Carbide HSSE

Emuge AU513500.5011 Tap 3/8-16.00TPI Bottoming NC/UNC ANSI/ANSI 1.5P-2.0P Carbide HSSE

Part Number: EMUAU513500.5011 ISO: AU513500.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156643
Vendor: Sussex Tool and Supply
$60.27
EMUGE AU513500.5011 3/8"x16.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 2B NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
