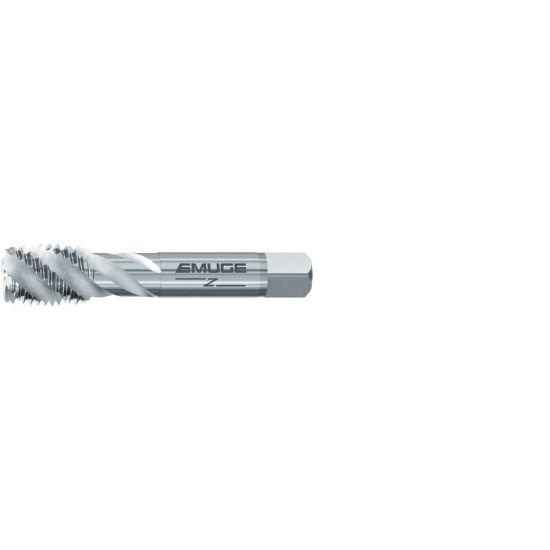

Picture of Emuge AU513500.5006 Tap Bottoming No.8-32.00TPI 2B NC/UNC ANSI/ANSI HSSE

Emuge AU513500.5006 Tap Bottoming No.8-32.00TPI 2B NC/UNC ANSI/ANSI HSSE

Part Number: EMUAU513500.5006 ISO: AU513500.5006

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156639
Vendor: Sussex Tool and Supply
$42.64
EMUGE AU513500.5006 No.8x32.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 2B NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Tap Chamfer 1.5P-2.0P
