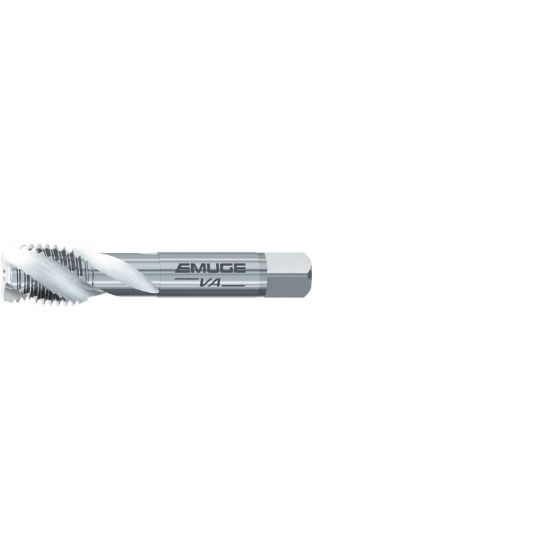

EMUGE AU503000.0303 Tap M12-1.50MM Mod Bottom Metric ANSI/ANSI 2.0P-3.0P Cobalt HSSE

ISO: AU503000.0303

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU503000.0303
Delivery date: 3-5 days
$87.33

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <42HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Thread Pitch 1.50MM
Tool Material Steel
Flute Direction R - Right
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Length Type Standard
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3740 85.70MM
Thread Size M12
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
