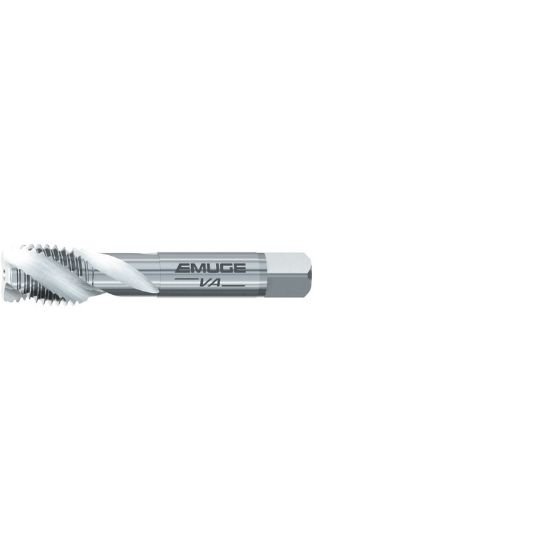

Picture of Emuge AU503000.0080 Tap Mod Bottom M8-1.25mm 6H Metric ANSI/ANSI HSSE

Emuge AU503000.0080 Tap Mod Bottom M8-1.25mm 6H Metric ANSI/ANSI HSSE

Part Number: EMUAU503000.0080 ISO: AU503000.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159863
Vendor: Sussex Tool and Supply
$53.39
EMUGE AU503000.0080 M8x1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Tap Chamfer 2.0P-3.0P
