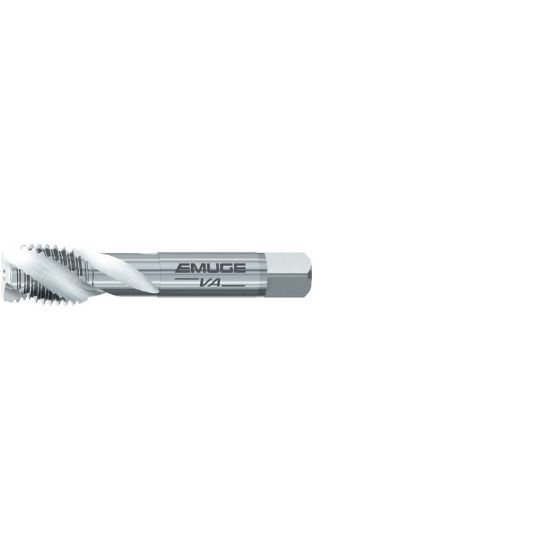

Picture of Emuge AU503000.0060 Tap Mod Bottom M6-1.00mm 6H Metric ANSI/ANSI HSSE

Emuge AU503000.0060 Tap Mod Bottom M6-1.00mm 6H Metric ANSI/ANSI HSSE

Part Number: EMUAU503000.0060 ISO: AU503000.0060
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$55.71
SKU: 1159862

Description

EMUGE AU503000.0060 M6x1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard ANSI/ANSI
