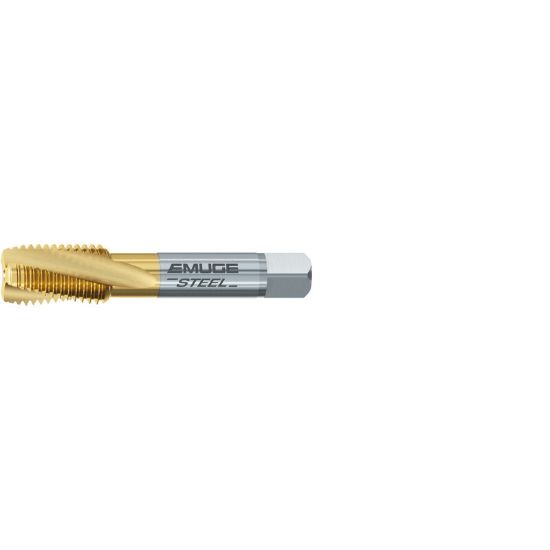

EMUGE AU461400.0331 Tap Bottoming M14-1.50MM 6H Metric ANSI/ANSI HSSE TiN

ISO: AU461400.0331

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU461400.0331
Delivery date: 3-5 days
$156.73

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Coating TiN
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Flutes/Inserts 3
Dimension Standard ANSI/ANSI
Overall Len 3.5940 91.29MM
Tap Square 0.3220
Thread Type Metric
Thread Size M14
Thread Pitch 1.50MM
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
