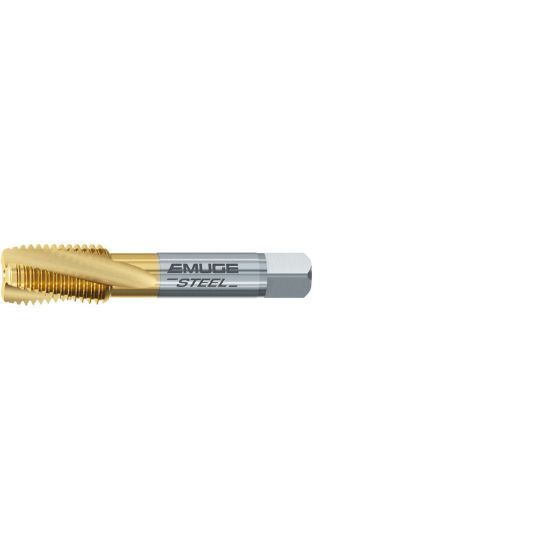

EMUGE AU461400.0303 Tap Bottoming M12-1.50MM 6H Metric ANSI/ANSI HSSE TiN

ISO: AU461400.0303

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU461400.0303
Delivery date: 3-5 days
$109.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Package Size 1
Coating TiN
Shipping State Massachusetts
Dimensional Specifications
Thread Size M12
Flutes/Inserts 3
Dimension Standard ANSI/ANSI
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3740 85.70MM
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Pitch 1.50MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
