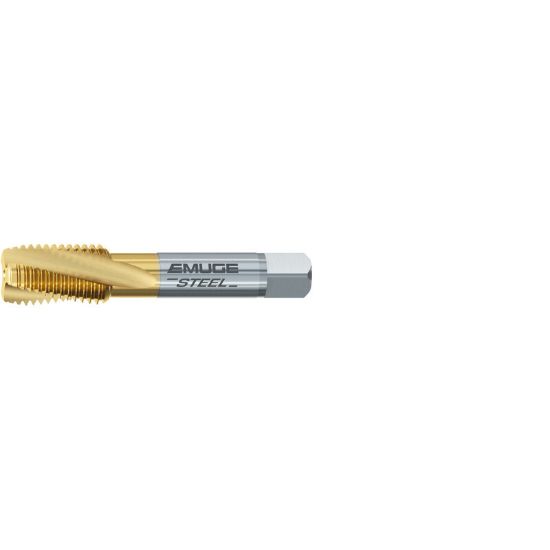

EMUGE AU461400.0277 Tap M10-1.25MM Bottoming Metric ANSI/ANSI 1.5P-2.0P Carbide HSSE TiN

ISO: AU461400.0277

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU461400.0277
Delivery date: 3-5 days
$85.56

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Made In USA No
Coating TiN
Dimensional Specifications
Thread Type Metric
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Thread Limit 6H
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Flutes/Inserts 3
Thread Size M10
Dimension Standard ANSI/ANSI
Thread Pitch 1.25MM
Tool Material Steel
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Length Type Standard
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
