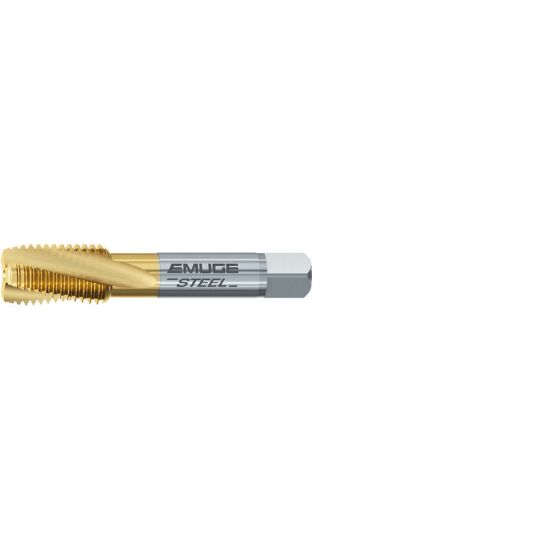

EMUGE AU461400.0116 Tap Bottoming M16-2.00MM 6H Metric ANSI/ANSI HSSE TiN

ISO: AU461400.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU461400.0116
Delivery date: 3-5 days
$170.75

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Thread Size M16
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard ANSI/ANSI
Thread Type Metric
Overall Len 3.8110 96.80MM
Machine Side Connection Type Tap Collet
Thread Pitch 2.00MM
Flutes/Inserts 3
Tap Square 0.3600
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
