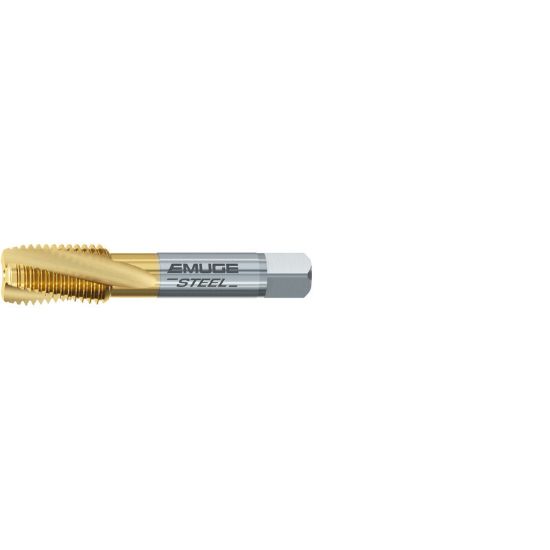

EMUGE AU461400.0112 Tap Bottoming M12-1.75MM 6H Metric ANSI/ANSI HSSE TiN

ISO: AU461400.0112

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU461400.0112
Delivery date: 3-5 days
$104.40

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Package Size 1
Application Bottom Tapping, Tapping, Cut Tapping
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Thread Pitch 1.75MM
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Cut Rating <40HRC Steel, Stainless Steel
Dimension Standard ANSI/ANSI
Overall Len 3.3740 85.70MM
Drill Range 0.4008 10.18MM - 0.4189 10.64MM
Thread Type Metric
Shank/Pilot Dia 0.3670 9.32MM
Thread Size M12
Flutes/Inserts 3
Tool Material Steel
Thread Limit 6H
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Multi Spindle Yes
Job Shop Yes
