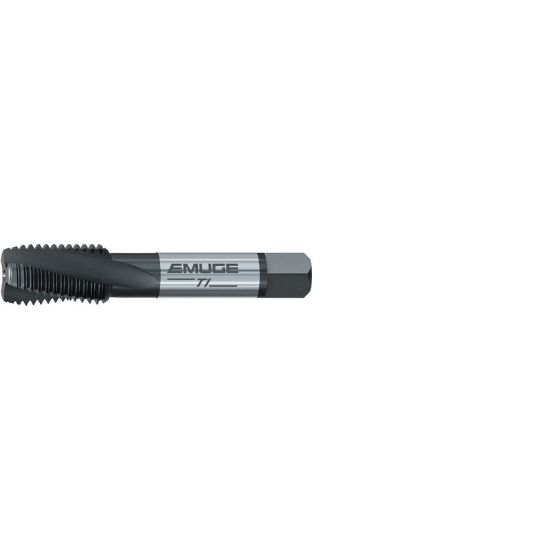

EMUGE AU456011.5047 Tap 1/2-20.00TPI Mod Bottom NF/UNF/UNEF ANSI/ANSI 2.0P-3.0P Carbide HSSE Nitride + Steam Oxide

ISO: AU456011.5047

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU456011.5047
Delivery date: 3-5 days
$94.98

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size 1/2"
Tool Material Steel
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 20.00TPI
Flutes/Inserts 4
Thread Limit 3B
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Overall Len 3.3740 85.70MM
Shank/Pilot Dia 0.3670 9.32MM
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
