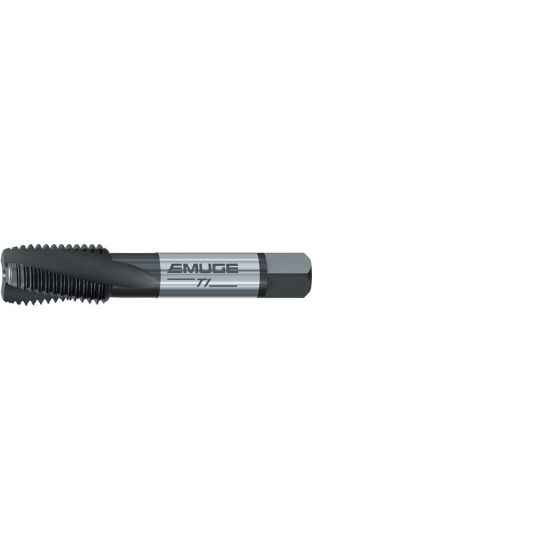

EMUGE AU456011.5015 Tap 5/8-11.00TPI Mod Bottom NC/UNC ANSI/ANSI 2.0P-3.0P Cobalt HSSE Nitride + Steam Oxide

ISO: AU456011.5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU456011.5015
Delivery date: 3-5 days
$145.01

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Nitride + Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Thread Size 5/8"
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Overall Len 3.8110 96.80MM
Flutes/Inserts 3
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Dimension Standard ANSI/ANSI
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
