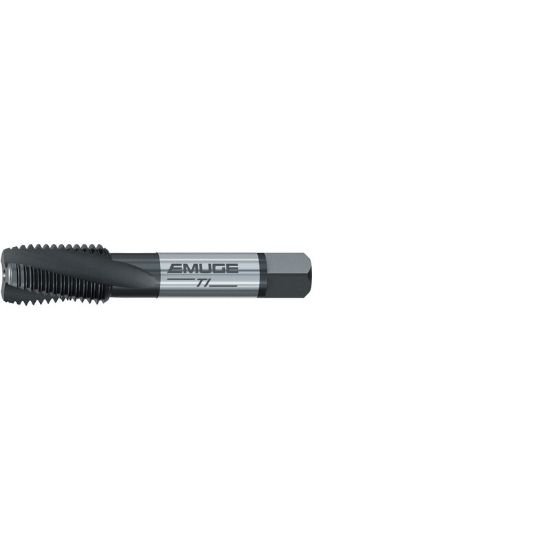

Emuge AU456011.5050 Tap 3/4-16.00TPI Mod Bottom NF/UNF/UNEF ANSI/ANSI 2.0P-3.0P HSSE Nitride + Steam Oxide

Part Number: EMUAU456011.5050 ISO: AU456011.5050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159760
$201.92
EMUGE AU456011.5050 3/4"x16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Nitride + Steam Oxide 3B NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride + Steam Oxide
Overall Length 4.2520 108.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit 3B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Tap Square 0.4420
Tap Chamfer 2.0P-3.0P
