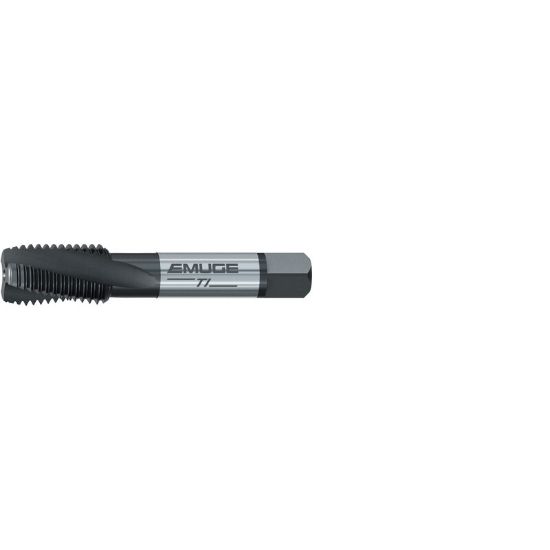

EMUGE AU456001.5044 Tap 5/16-24.00TPI Mod Bottom NF/UNF/UNEF ANSI/ANSI 2.0P-3.0P Carbide HSSE Nitride + Steam Oxide

ISO: AU456001.5044

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU456001.5044
Delivery date: 3-5 days
$57.41

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Thread Limit 2B
Cut Rating High Temp, Inconel, Titanium
Flute Direction R - Right
Overall Len 2.7200 69.09MM
Length Type Standard
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tap Square 0.2380
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Medical Yes
Job Shop Yes
