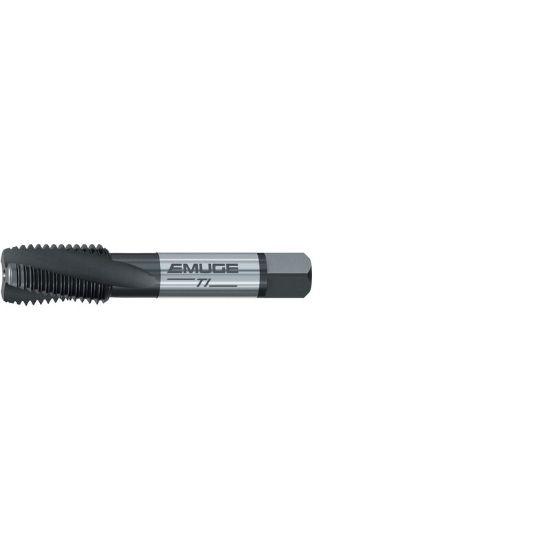

EMUGE AU456001.5016 Tap 3/4-10.00TPI Mod Bottom NC/UNC ANSI/ANSI 2.0P-3.0P HSSE Nitride + Steam Oxide

ISO: AU456001.5016

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU456001.5016
Delivery date: 3-5 days
$190.99

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Dimensional Specifications
Thread Type NC/UNC
Flute Direction R - Right
Length Type Standard
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Chamfer 2.0P-3.0P
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Thread Pitch 10.00TPI
Thread Limit 2B
Cut Rating High Temp, Inconel, Titanium
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Type Tap Collet
Overall Len 4.2520 108.00MM
Tap Square 0.4420
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
