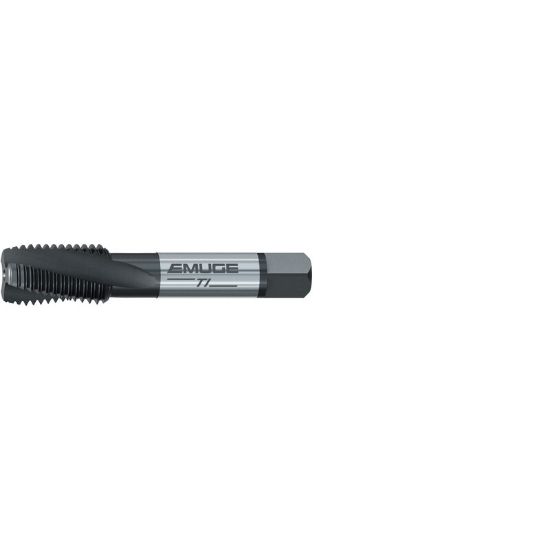

EMUGE AU456001.5011 Tap 3/8-16.00TPI Mod Bottom NC/UNC ANSI/ANSI 2.0P-3.0P Carbide HSSE Nitride + Steam Oxide

ISO: AU456001.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU456001.5011
Delivery date: 3-5 days
$63.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Coating Nitride + Steam Oxide
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tool Material Steel
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Thread Limit 2B
Cut Rating High Temp, Inconel, Titanium
Thread Size 3/8"
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
