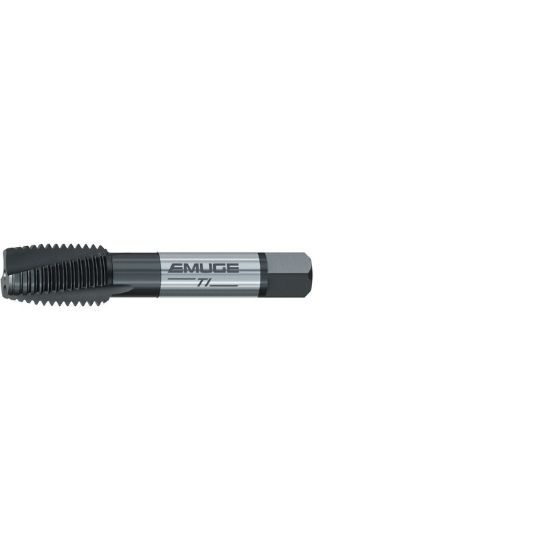

EMUGE AU306011.5048 Tap 9/16-18.00TPI Plug NF/UNF/UNEF ANSI/ANSI 4P-5P HSS HSSE Nitride + Steam Oxide

ISO: AU306011.5048

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU306011.5048
Delivery date: 3-5 days
$134.73

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Made In USA No
Coating Nitride + Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 18.00TPI
Length Type Standard
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Square 0.3220
Tap Type Plug
Thread Limit 3B
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Thread Size 9/16"
Tap Chamfer 4P-5P
Flutes/Inserts 3
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Machine Side Connection Type Tap Collet
Overall Len 3.5940 91.29MM
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
