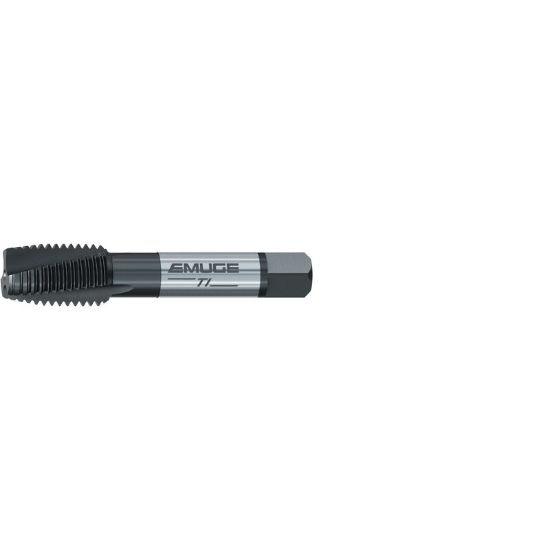

EMUGE AU306011.5013 Tap 1/2-13.00TPI Plug NC/UNC ANSI/ANSI 4P-5P Carbide HSSE Nitride + Steam Oxide

ISO: AU306011.5013

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU306011.5013
Delivery date: 3-5 days
$90.80

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Coating Nitride + Steam Oxide
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Length Type Standard
Thread Size 1/2"
Tool Material Steel
Tap Chamfer 4P-5P
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Style Cut Spiral Point
Thread Limit 3B
Dimension Standard ANSI/ANSI
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Overall Len 3.3740 85.70MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Shank/Pilot Dia 0.3670 9.32MM
Tap Type Plug
Thread Pitch 13.00TPI
Thread Type NC/UNC
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
