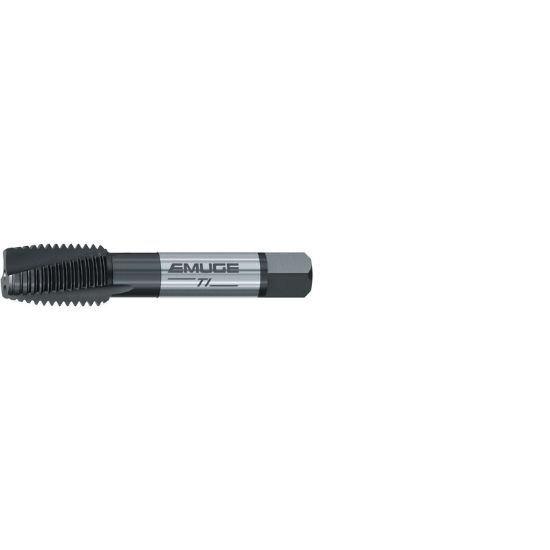

EMUGE AU306011.5011 Tap 3/8-16.00TPI Plug NC/UNC ANSI/ANSI 4P-5P Carbide HSSE Nitride + Steam Oxide

ISO: AU306011.5011

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU306011.5011
Delivery date: 3-5 days
$63.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Thread Size 3/8"
Tap Square 0.2860
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type NC/UNC
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Length Type Standard
Tool Material Steel
Tap Chamfer 4P-5P
Thread Limit 3B
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
