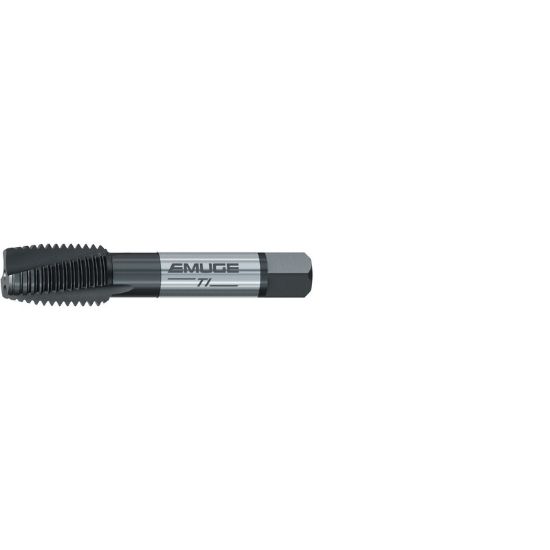

EMUGE AU306011.5010 Tap 5/16-18.00TPI Plug NC/UNC ANSI/ANSI 4P-5P HSSE Nitride + Steam Oxide

ISO: AU306011.5010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU306011.5010
Delivery date: 3-5 days
$55.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Massachusetts
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Coating Nitride + Steam Oxide
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Type NC/UNC
Thread Pitch 18.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Chamfer 4P-5P
Flutes/Inserts 3
Thread Limit 3B
Cut Rating High Temp, Inconel, Titanium
Tap Square 0.2380
Tap Type Plug
Dimension Standard ANSI/ANSI
Flute Direction L - Left
Thread Size 5/16"
Overall Len 2.7200 69.09MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
