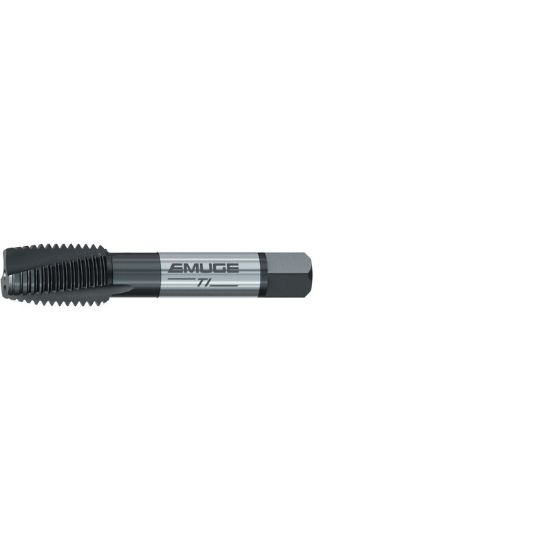

EMUGE AU306001.5048 Tap 9/16-18.00TPI Plug NF/UNF/UNEF ANSI/ANSI 4P-5P Cobalt HSSE Nitride + Steam Oxide

ISO: AU306001.5048

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU306001.5048
Delivery date: 3-5 days
$132.30

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Dimensional Specifications
Length Type Standard
Thread Pitch 18.00TPI
Machine Side Connection Type Tap Collet
Thread Size 9/16"
Flutes/Inserts 3
Drill Range 0.5047 12.82MM - 0.5189 13.18MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 3.5940 91.29MM
Tap Square 0.3220
Tap Style Cut Spiral Point
Thread Limit 2B
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
