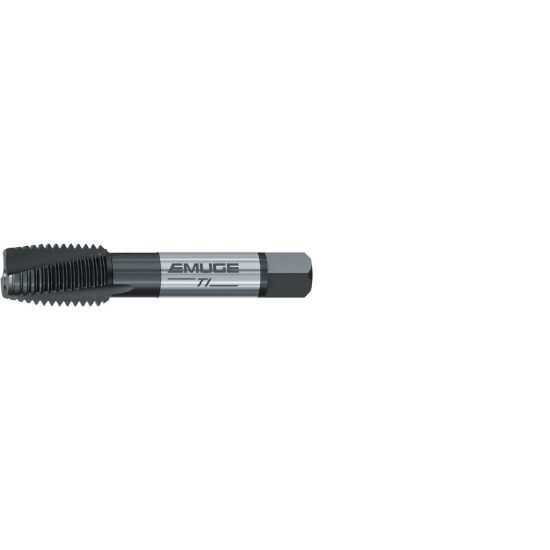

EMUGE AU306001.5014 Tap 9/16-12.00TPI Plug NC/UNC ANSI/ANSI 4P-5P HSS HSSE Nitride + Steam Oxide

ISO: AU306001.5014

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU306001.5014
Delivery date: 3-5 days
$129.08

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating Nitride + Steam Oxide
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Chamfer 4P-5P
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Thread Size 9/16"
Flutes/Inserts 3
Thread Limit 2B
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Drill Range 0.4756 12.08MM - 0.4972 12.63MM
Tap Type Plug
Overall Len 3.5940 91.29MM
Tap Square 0.3220
Thread Type NC/UNC
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
