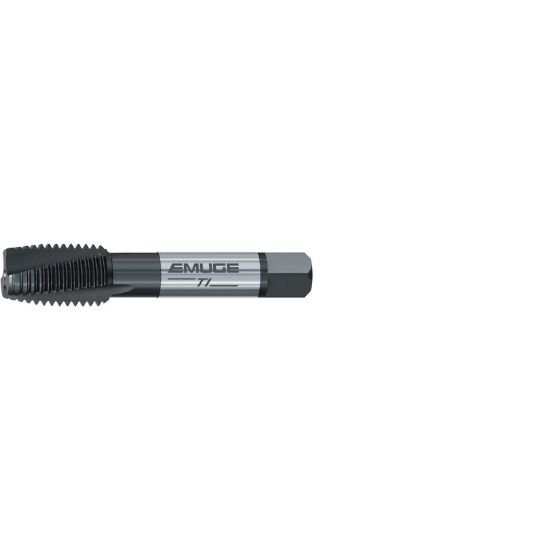

EMUGE AU306001.5003 Tap Plug No.4-40.00TPI 2B NC/UNC ANSI/ANSI HSSE Nitride + Steam Oxide

ISO: AU306001.5003

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU306001.5003
Delivery date: 3-5 days
$50.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Coating Nitride + Steam Oxide
Dimensional Specifications
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Thread Limit 2B
Flute Direction L - Left
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Thread Type NC/UNC
Flutes/Inserts 2
Length Type Standard
Drill Range 0.0860 2.18MM - 0.0925 2.35MM
Tool Material Steel
Tap Square 0.1100
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
