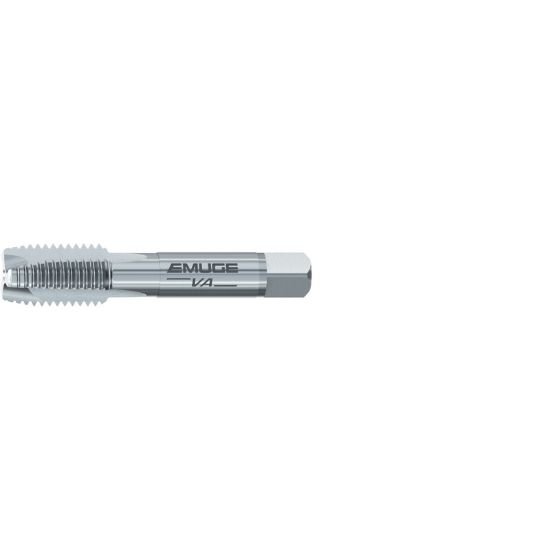

Emuge AU203000.5040 Tap No.8-36.00TPI Plug NF/UNF/UNEF ANSI/ANSI 4P-5P Carbide HSSE Nitride
Emuge AU203000.5040 Tap No.8-36.00TPI Plug NF/UNF/UNEF ANSI/ANSI 4P-5P Carbide HSSE Nitride
Part Number: EMUAU203000.5040 ISO: AU203000.5040
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1160369
Vendor:
Sussex Tool and Supply
$40.34
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE AU203000.5040 No.8x36.00TPI Cut Spiral Point Plug 4P-5P HSSE Nitride 2B NF/UNF/UNEF Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
Stainless Steel, <42HRC Steel
Coating
Nitride
Overall Length
2.1250 53.98MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.1680 4.27MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
36.00TPI
Thread Type
NF/UNF/UNEF
Flute Direction
STRAIGHT
Thread Size
No.8
Thread Limit
2B
Tap Style
Cut Spiral Point
Tap Type
Plug
Dimension Standard
ANSI/ANSI
Tap Drill Range
0.1350 3.43MM - 0.1421 3.61MM
Tap Square
0.1310
Tap Chamfer
4P-5P
