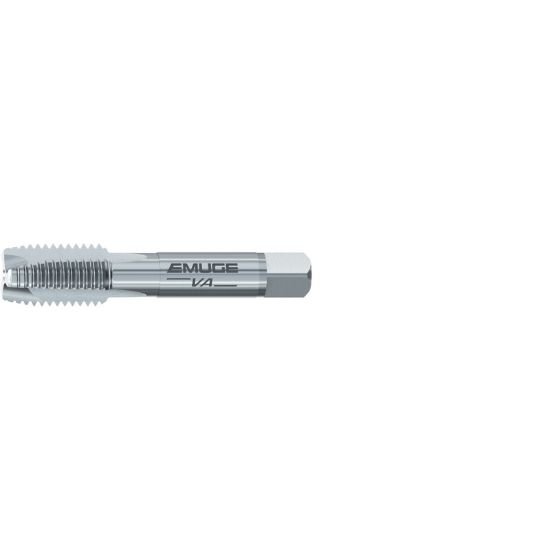

Emuge AU203000.0040 Tap Plug M4-0.70mm 6H Metric ANSI/ANSI HSSE Nitride
Emuge AU203000.0040 Tap Plug M4-0.70mm 6H Metric ANSI/ANSI HSSE Nitride
Part Number: EMUAU203000.0040 ISO: AU203000.0040
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
EMUGE
SKU:
1160215
Vendor:
Sussex Tool and Supply
$45.09
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
EMUGE AU203000.0040 M4x0.70MM Cut Spiral Point Plug 4P-5P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name
Attribute value
Shipping State
MASSACHUSETTS
Made In USA
NO
Cutter Type
Tapping
Tool Material
Steel
Cutting Edge Mat
HSSE
Machine Side Connection Type
Tap Collet
Cut Rating
Stainless Steel, <42HRC Steel
Coating
Nitride
Overall Length
2.1250 53.98MM
Coolant Thru
Non Coolant
Shank/Pilot Dia
0.1680 4.27MM
Flutes/Inserts
3
Type Of Tool
Tap
Length Type
STANDARD
Performance Rating
High Performance
Thread Pitch
0.70MM
Thread Type
METRIC
Flute Direction
STRAIGHT
Thread Size
M4
Thread Limit
6H
Tap Style
Cut Spiral Point
Tap Type
Plug
Dimension Standard
ANSI/ANSI
Tap Drill Range
0.1287 3.27MM - 0.1358 3.45MM
Tap Square
0.1310
Tap Chamfer
4P-5P
