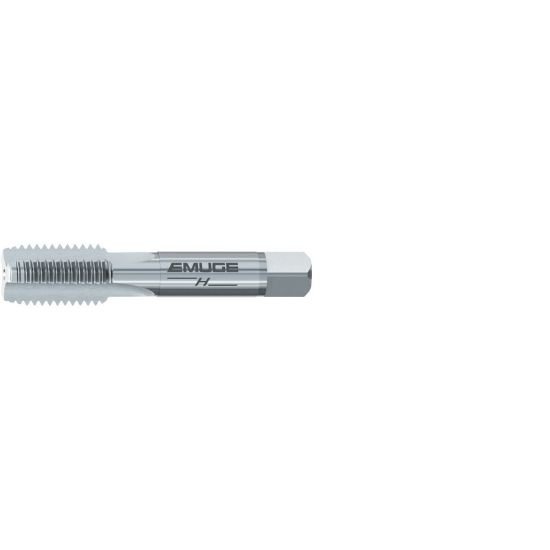

Emuge AU110501.0116 Tap M16-2.00mm Bottoming Metric ANSI/ANSI 1.5P-2.0P HSSE Nitride

Part Number: EMUAU110501.0116 ISO: AU110501.0116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1155650
$121.82
EMUGE AU110501.0116 M16x2.00MM Cut Straight Flute Bottoming 1.5P-2.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating High Temp, Inconel, Titanium
Coating Nitride
Overall Length 3.8110 96.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M16
Thread Limit 6H
Tap Style Cut Straight Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3600
Tap Chamfer 1.5P-2.0P
