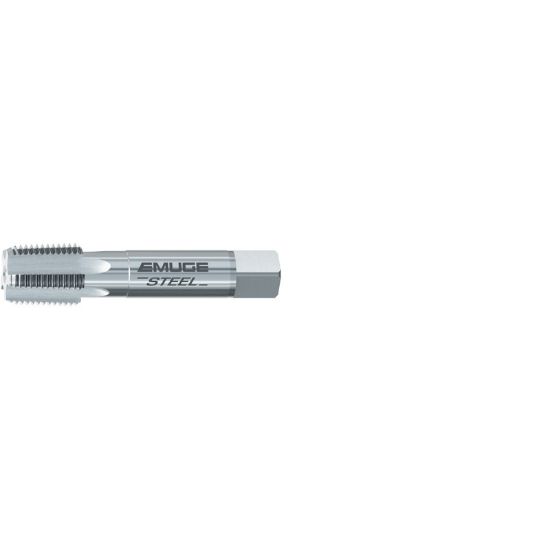

EMUGE A0181000.4120 Tap 1-11.00TPI Pipe BSPT DIN/DIN 2.0P-3.0P HSSE

ISO: A0181000.4120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUA0181000.4120
Delivery date: 3-5 days
$421.59

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Straight Flute Pipe, Tapping, Pipe Tapping
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 11.00TPI
Thread Type BSPT
Thread Limit PIPE
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Pipe
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Tool Material Steel
Length Type Standard
Flutes/Inserts 6
Drill Range 1.1717 29.76MM
Tap Square 0.7870
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.9840 24.99MM
Tap Style Pipe Straight Flute
Thread Size 1"
Overall Len 4.3307 110.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Automotive Yes
