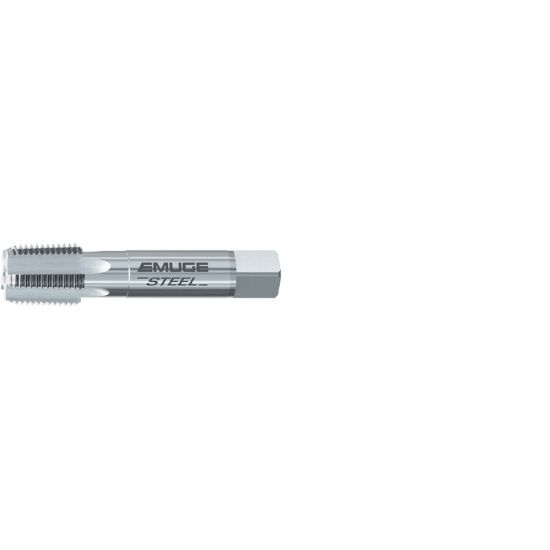

EMUGE A0181000.4116 Tap 1/4-19.00TPI Pipe BSPT DIN/DIN 2.0P-3.0P HSSE

ISO: A0181000.4116

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUA0181000.4116
Delivery date: 3-5 days
$144.51

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Straight Flute Pipe
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tap Chamfer 2.0P-3.0P
Thread Type BSPT
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Square 0.3540
Tap Style Pipe Straight Flute
Thread Pitch 19.00TPI
Tool Material Steel
Flutes/Inserts 5
Thread Size 1/4"
Flute Direction STRAIGHT
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Overall Len 2.4803 63.00MM
Shank/Pilot Dia 0.4330 11.00MM
Drill Range 0.4646 11.80MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Automotive Yes
