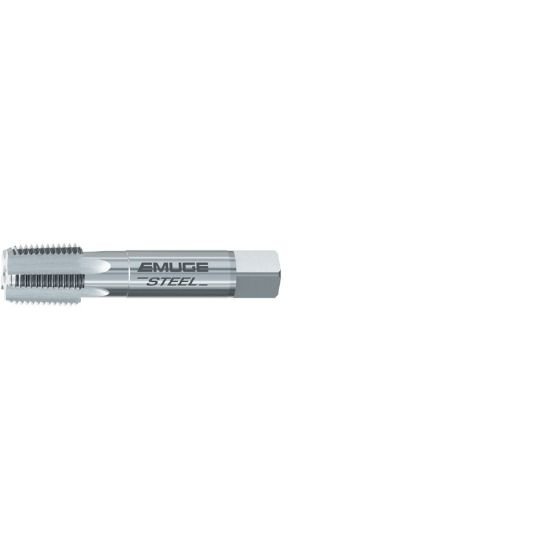

Picture of Emuge A0181000.4119 Tap 3/4-14.00TPI Pipe BSPT DIN/DIn 2.0P-3.0P HSSE

Emuge A0181000.4119 Tap 3/4-14.00TPI Pipe BSPT DIN/DIn 2.0P-3.0P HSSE

Part Number: EMUA0181000.4119 ISO: A0181000.4119

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1158109
Vendor: Sussex Tool and Supply
$315.32
EMUGE A0181000.4119 3/4"x14.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE BSPT Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Overall Length 3.9370 100.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7870 19.99MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 14.00TPI
Thread Type BSPT
Flute Direction STRAIGHT
Thread Size 3/4"
Thread Limit PIPE
Tap Style Pipe Straight Flute
Tap Type Pipe
Dimension Standard DIN/DIN
Tap Drill Range 0.9059 23.01MM
Tap Square 0.6790
Tap Chamfer 2.0P-3.0P
