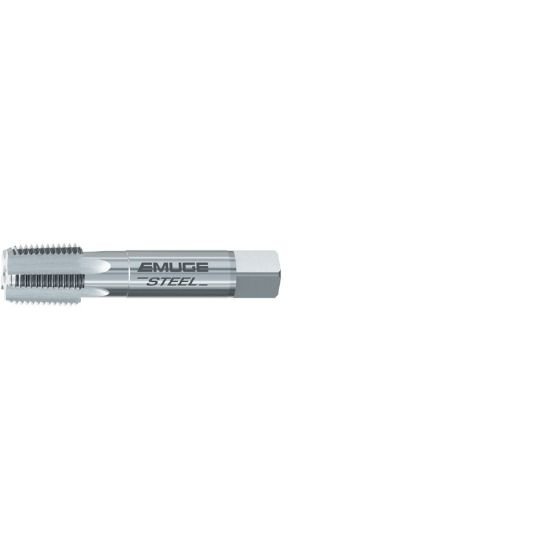

Picture of Emuge A0181000.4116 Tap 1/4-19.00TPI Pipe BSPT DIN/DIn 2.0P-3.0P HSSE

Emuge A0181000.4116 Tap 1/4-19.00TPI Pipe BSPT DIN/DIn 2.0P-3.0P HSSE

Part Number: EMUA0181000.4116 ISO: A0181000.4116
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1158106
Vendor: Sussex Tool and Supply
$169.97

Description

EMUGE A0181000.4116 1/4"x19.00TPI Pipe Straight Flute Pipe 2.0P-3.0P HSSE Uncoated PIPE BSPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type BSPT
Flute Direction STRAIGHT
Tap Style Pipe Straight Flute
Tap Type Pipe
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Shank/Pilot Dia 0.4330 11.00MM
Flutes/Inserts 5
Thread Pitch 19.00TPI
Thread Size 1/4"
Tap Drill Range 0.4646 11.80MM
Tap Square 0.3540
Performance & Capacity
Cut Rating Gray Iron, <40HRC Steel, Ductile Iron
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
