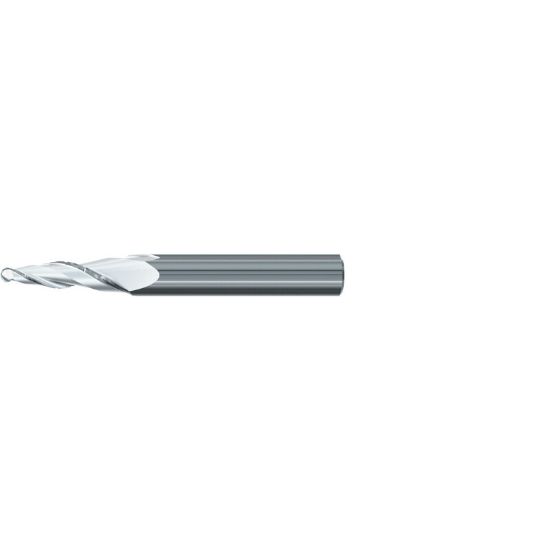

EMUGE 3447.08020A DIA 4MM SH 0.3937 LOC 0.9055 OAL 2.8346 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3447.08020A
Delivery date: 3-5 days
$146.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Taper Side Milling, Ball Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Massachusetts
Dimensional Specifications
Cutter Dia 0.1574 4.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Shank/Pilot Dia 0.3937 10.00MM
Helix Angle 30°
Flutes/Inserts 2
Inch/Metric Metric
Length Type Standard
Overall Len 2.8346 72.00MM
Length Of Cut 0.9055 23.00MM
Dimension Description 0.157 x 0.394 x 0.906 x 2.835
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
Taper Angle 8.0°
Machine Side Connection Size 0.3937 10.00MM
End Of Tool Shape Ball Nose
Taper Flute Yes
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
