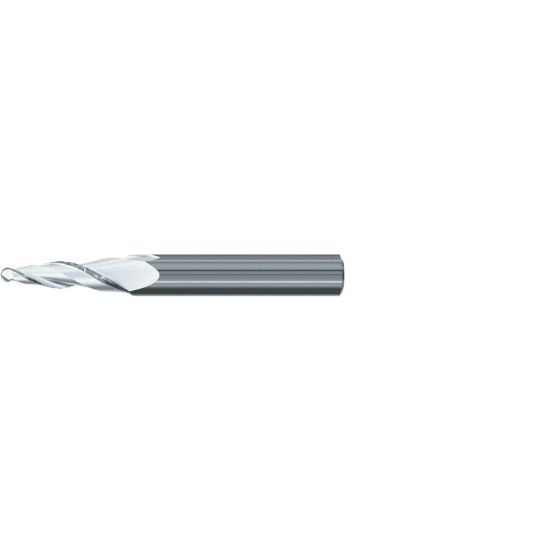

EMUGE 3447.04015A DIA 3MM SH 0.3150 LOC 0.7874 OAL 2.4803 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3447.04015A
Delivery date: 3-5 days
$127.88

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Taper Side Milling, Ball Milling, Copy Milling
Shipping State Massachusetts
Made In USA No
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Dimension Description 0.118 x 0.315 x 0.787 x 2.480
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Single/Double End Single End
End Of Tool Shape Ball Nose
Taper Flute Yes
Taper Angle 4.0°
Length Type Standard
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Helix Angle 30°
Cutter Dia 0.1181 3.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Cutter Style Ball Taper Flute Finisher
Length Of Cut 0.7874 20.00MM
Flutes/Inserts 2
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
