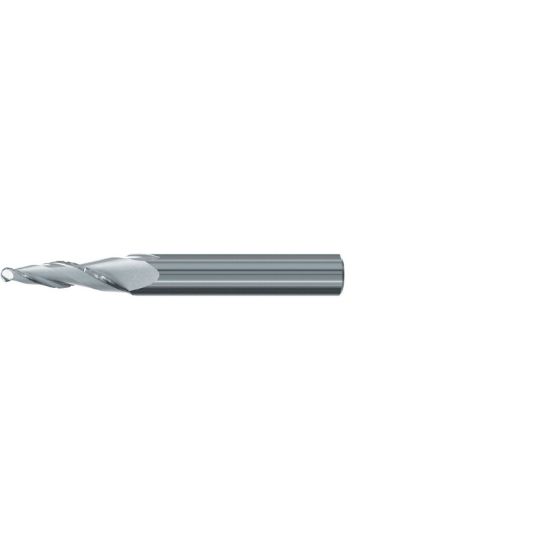

EMUGE 3446.08015A DIA 3MM SH 0.3150 LOC 0.7480 OAL 2.4803 End Mill Taper Flute Carbide Uncoated Single End Ball Nose Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3446.08015A
Delivery date: 3-5 days
$122.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Profile Milling, Taper Side Milling, Copy Milling, Ball Milling
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 2
Length Type Standard
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Inch/Metric Metric
Single/Double End Single End
Taper Angle 8.0°
End Of Tool Shape Ball Nose
Taper Flute Yes
Cutter Dia 0.1181 3.00MM
Machine Side Connection Size 0.3150 8.00MM
Length Of Cut 0.7480 19.00MM
Helix Angle 30°
Dimension Description 0.118 x 0.315 x 0.748 x 2.480
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Cutter Style Ball Taper Flute Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
